PREMEO FLAT-S 1

Flatter than ever before. Extremely lightweight.
The utmost in comfort.

Premeo Flat-S 1 Snap System

Flatter than ever before. Extremely lightweight. The utmost in comfort.

PREMEO FLAT-S 1 is a revolutionary new press stud system from YKK STOCKO FASTENERS. Made from stainless steel and with FlexFix® technology, PREMEO FLAT-S 1 has been designed for durability and to withstand industrial washing. As such, the press stud has taken on a new dimension.

It is now able to offer the utmost in comfort, the best functionality, an attractive, stylish design – and it is flatter than ever!

Height difference between PREMEO FLAT-S 1 and other press stud systems.

Ideal for Industrial Washing

Flat overall height ensures low mechanical pressure

Workwear is often subjected to industrial washing. The drying process exposes the laundry to water extraction press, which exerts a high mechanical pressure on the press stud systems, which often leads to defects in the system itself, as well as in wear and damage to the fabrics.

Now there is PREMEO FLAT-S 1 – a press stud system that can withstand the pressure applied to protruding components. The likelihood of the fabric being damaged is significantly reduced thanks to the extremely flat design.

The image shows the typical types of damage caused by conventional press stud systems. The taller the structure of the press stud system, the greater the likelihood that the fabric itself will be damaged.

Impressive Technology

How is Premeo Flat-S 1 so flat

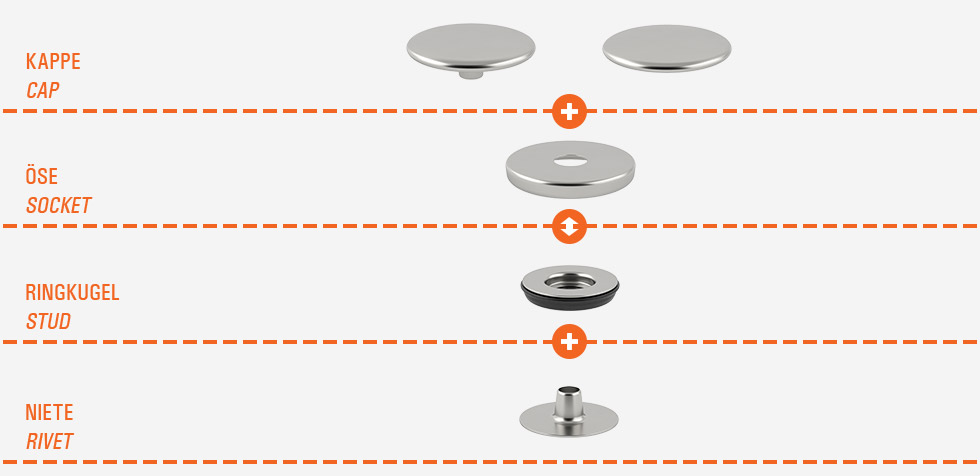

SYSTEM STRUCTURE

TECHNOLOGY

The PREMEO FLAT-S 1 system is based on FlexFix® technology. A flexible, high-tech plastic has been integrated into the system. It boasts springy elastic properties and guarantees extremely long and consistent opening values.

FUNCTIONALITY

The functioning of the PREMEO FLAT-S 1 press stud system differs from all other systems in two main ways:

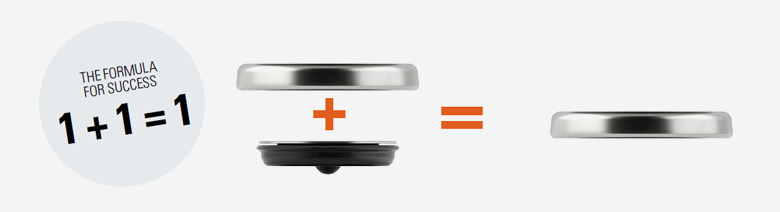

1. The socket and stud combine to form one component:
Unlike conventional press stud systems, in which the stud part connects with the socket and the height of the two components is added together; in the PREMEO FLAT-S 1 system, the socket and stud combine to form one component. This almost halves the total height!

2. FlexFix® technology on the stud
The FlexFix® technology with high-tech plastic is not located on the socket; instead it is found on the system’s stud. The combination of the metal and plastic components is highly stable and can withstand extremely high mechanical loads. As the stud (spring element) is pressed into the socket, the plastic coating glides softly into the socket and clicks into place. The fastener is just as convenient to open. PREMEO FLAT-S 1 has a patent application pending.

All-In-One

All the benefits in one system

The extremely flat design of the PREMEO FLAT-S 1 is revolutionary. And the new press stud system has further benefits too: mainly in terms of wearing comfort, durability and design PREMEO FLAT-S 1 ticks every box.

COMFORT AND FUNCTIONALITY

The increased comfort is owed partly to the very low weight and partly to the gentle opening and closing mechanism of the PREMEO FLAT-S 1 system. The flat design reduces the distance between the two fabric surfaces when closing the fastener. As a result, the upper and lower extension close perfectly, thus reducing gaps and draughts.

DURABILITY

The PREMEO FLAT-S 1 system is based on FlexFix® technology, which guarantees a significantly high mechanical strength. Stability, durability and consistent opening values set this technology apart. The functional parts can withstand up to 50,000 opening and closing cycles without suffering any noteworthy wear.

DESIGN

At the same time, the PREMEO FLAT-S 1 system offers various design options to cater to individual requirements. The coloured plastic stud components can be used to create subtle splashes of colour. Other design options, such as galvanising and embossing, means that every PREMEO FLAT-S 1 system can be transformed into a unique design highlight.

BENEFITS AT A GLANCE

  • Industrial washing suitability
  • Extremely flat design
  • Low net weight
  • Low friction
  • Consistent opening values
  • High pressure resistance
  • Non-corrosive thanks to stainless steel
  • No cold welding
  • Long-term resistance
  • Gentle opening and closing mechanism
  • Very comfortable to wear
  • Various design options

TYPICAL APPLICATIONS

  • Industrial laundry and hired garments
  • Workwear (overalls, jackets and trousers)
  • Multifunctional clothing
  • Lightweight sports and leisurewear
  • Leather goods
  • Technical applications

Fabrics/materials with thicknesses of between 150 g and 300 g/m² (e.g. protective polyester/ cotton fabric) are suitable for PREMEO FLAT-S 1.

COLOURED PLASTIC COMPONENT

PREMEO FLAT-S 1 – FOR A SPLASH OF COLOUR! Thanks to its coloured plastic coating, the FLAT model from the PREMEO range provides a variety of ways to create a special design accent.

GALVANIC SURFACES

Whether in a trend colour or in line with your brand identity or CI specifications, the multiple combinations formed from the coloured plastic and the galvanised surfaces can be used to create fascinating effects.

Discover the various design options with our product configurator.

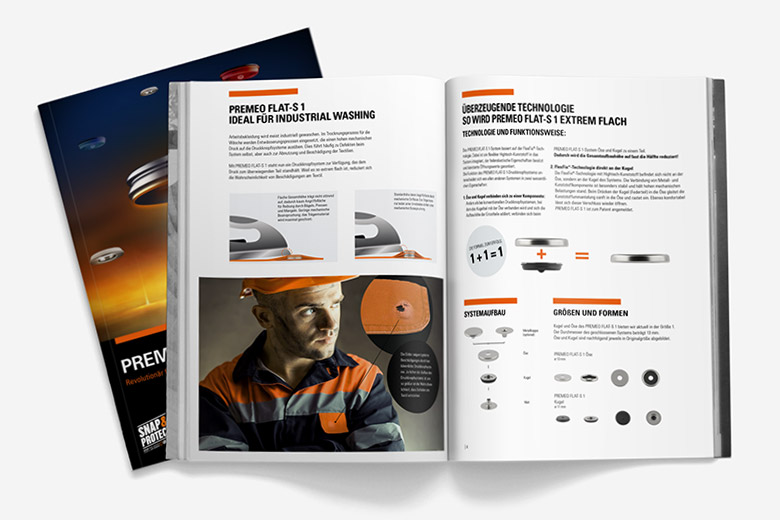

DOWNLOAD PREMEO FLAT-S 1 CATALOGUE

You can find the PREMEO FLAT-S 1 catalogue with further information is available for download. From technical information to application areas, the catalogue offers everything you need to know about the Premeo Flat-S 1 push-button system. The document is available in PDF format. If you encounter problems displaying the document in your browser, we recommend that you use Adobe Reader. Download under get.adobe.com/en/reader

REQUEST DOWNLOAD (PDF 1.9MB)

Premeo Flat-S 1

Artikel
D (mm)
Action
Material
Info
Caps
DK 110/13S
Durchmesser: 13,0 mm

Material: Stainless steel
Info: 0175215 NSD(DK 110/13S) ATTACHING DIE (1984109A0)
DPFN 1S
Durchmesser: 10,0 mm

Material: Stainless steel
Info: 0175216 NSD(DPFN 1S) ATTACHING DIE (1984110A0)
Socket
DPFO 1
Durchmesser: 13,0 mm

Material: Stainless steel
Info: 0175214 NSU(DPFO 1) ATTACHING DIE (1984108A0)
Stud
DPFK 1S
Durchmesser: 10,5 mm

Material: Stainless steel, plastic
Info: 0175228 NSU(DPFK 1S) ATTACHING DIE (1984111A0)
Rivet
DPFN 1S
Durchmesser: 10,0 mm

Material: Stainless steel
Info: 0175216 NSD(DPFN 1S) ATTACHING DIE (1984110A0)

ATTACHING INSTRUCTIONS

  • Self-locking attachment possible (no pre-punching necessary)
  • Manual and semi-automatic attachment possible
  • Application pressure 3.5-4 bar, input pressure min 5 bar (WPG 5041 + WPG 1041)
  • Do not attach to uneven fabrics

WASHING INFORMATION

  • Household laundry 60 °C
  • Industrial laundry ISO 15797
  • Wash cycle no. 2
