Premeo Protect-S 4 | 6 Snap Systems

The durable high-performance system

Press studs that undergo industrial washing need to meet stricter requirements. This includes the high mechanical load exerted by the dewatering presses. The opening values may not change either as a result of wear or degreasing. PREMEO PROTECT-S 4 | 6 are centrally riveted for stronger and heavy fabrics and materials. The excellent form stability is guaranteed by the FlexFix® technology in two sizes.

Thanks to the selection of materials, the risk of an extreme increase of the opening values (cold welding) is ruled out due to the complete regreasing process in industrial washing.

THE PRESS STUDS FOR WORKWEAR
PREMEO PROTECT-S 4 and PREMEO PROTECT-S 6 with FlexFix® technology keep you on the safe side.

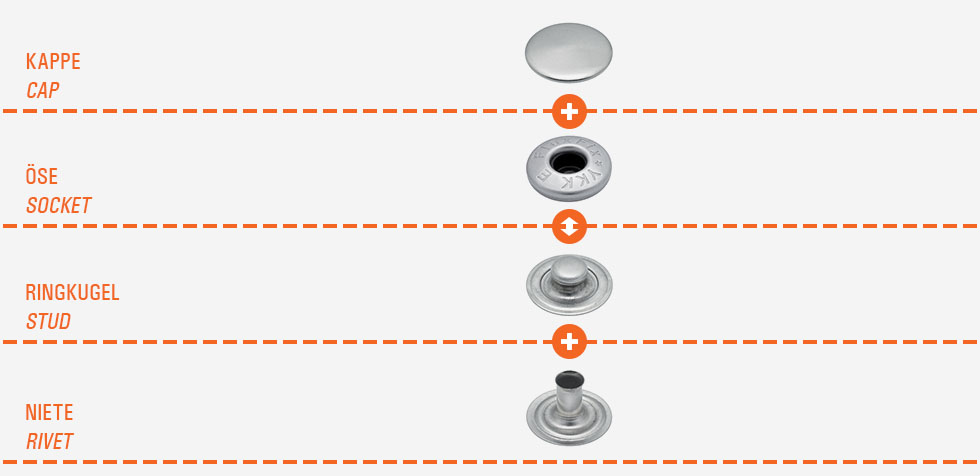

SYSTEM OVERVIEW

ykk_systemaufbau_premeo_protects_4-6_grau

THE BENEFITS AT A GLANCE

High stability when using dewatering presses
Constant opening values
No cold welding of socket and stud thanks to high-performance plastic
High level of comfort thanks to a constant level of quality
Long-term resistance
Number of repairs in the laundries are reduced

OTHER SPECIAL ASPECTS:

High thermal stability
Chemical resistance to hydrocarbons (car fuel, mineral oil, engine oil, etc.), essential oils, alcohol and conventional reagents (RKI list)
Washing and cleaning resistance according to DIN EN ISO 15797 (after min. 50 washes)
The norms EN 71, ÖkoTex 2 and Antinickel are satisfied

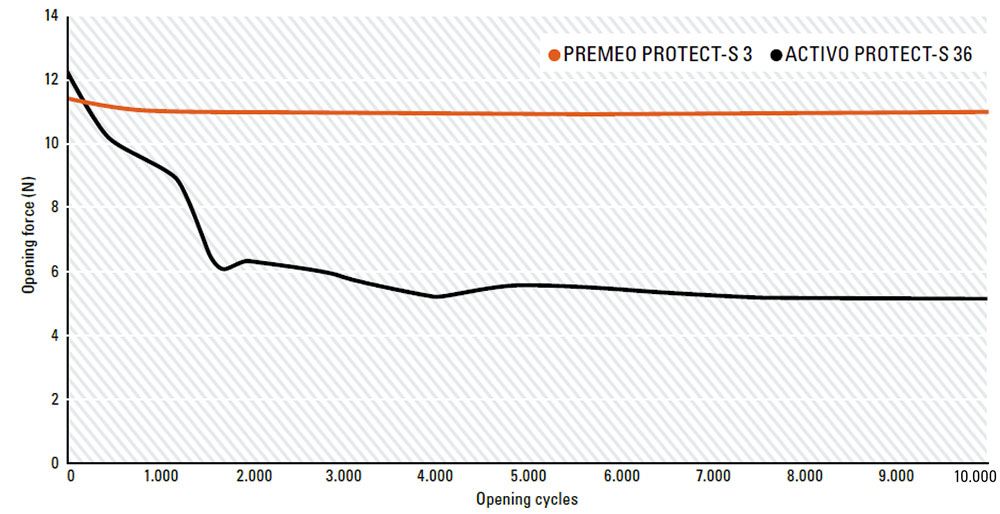

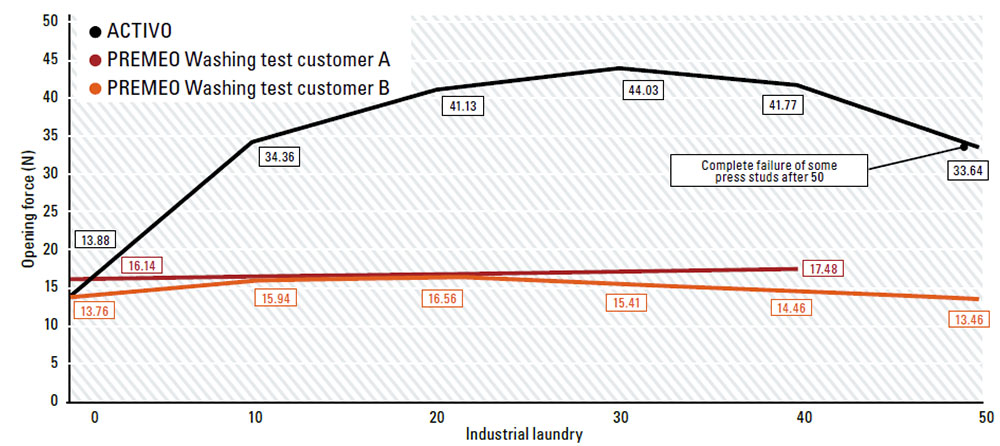

TESTS CONFIRM THE LONG-TERM DURABILITY OF PREMEO PROTECT-S 4 | 6

Tests at service supplier companies and the Institute ITV Denkendorf and Hohenstein* proved the high durability of the PREMEO PROTECT-S series. Thanks to its high-quality finish, PREMEO PROTECT-S 3 | 4 and 6 reduce the repair rates and contribute to reducing the costs. The constant high quality ensures a high level of comfort.

Ykk Workwear Industrial Washing Infografik1 En

Ykk Workwear Industrial Washing Infografik2 En

* The above-mentioned information corresponds to our current knowledge. Changes can be made at any time without prior notice. The technical information does not relieve you of your duty to carry out your own tests of our products with respect to their suitability for the intended application case. Our products are processed and used outside our control and therefore lie outside our scope of responsibilities. Our products are sold in line with our general terms and conditions.

DOWNLOAD INDUSTRIAL WASHING FOLDER

The Industrial Washing brochure with information on the Premeo Protect-S is available for download. From correct processing to application examples, the catalogue offers everything you need to know about the Premeo Protect-S push-button system. The document is available in PDF format. If you encounter problems displaying the document in your browser, we recommend that you use Adobe Reader. Download at get.adobe.com/en/reader

REQUEST DOWNLOAD (PDF 1.9MB)

APPLICATION SCOPES FOR WORKWEAR

Item		Material thickness [mm]	Grammage [gr]		Clothing
Item		Material thickness [mm]	> 200	< 200	Coat	Blouses	Jackets	Trousers
	DPO 4.025	0,3 – 1,5		•	•		•	•
	DPO 6.025	0,3 – 1,5		•	•		•	•

TECHNICAL DATA

Item designation	DPO 4.025	DPO 6.025
Material	Stainless steel 1.4401 + plastic POM
Processing	Semi-automatic and fully automatic
Care label	1. Household laundry
	2. Industrial laundry	Washing procedure for white workwear and/or sensitive coloured trimming items · Peracetic acid bleach Polyester/cotton
Norm conformity	EN 71
	DIN EN 1811 Nickel release	< 0,28 μg/week
Kensin	no
Absence of pollutants	OEKO-TEX Standard 100 (DETOX: We are currently undergoing recertification according to Attachment 6.)	Class 2 (Products with direct skin contact)
	The item meets the requirements of the REACH Regulation in the respective valid version
	The item meets the statutory requirements of the Consumer Goods Ordinance and the Chemicals Prohibition Order in the respective valid version
Tear-off force (N)	> 120N
Temperature resistance	Up to 160˚C (ISO 17493 – testing the convective heat resistance when using a hot-air circulating furnace – visual inspection of changes)
Schmelzbereich	approx. 180˚C
Light-fast	high
Corrosion resistance	Stainless steel: high	Plastic: very high

PROCESSING INFORMATION

Material properties and thicknesses
The design of your garment is decisive for the correct selection of the suitable PREMEO system. The permissible fabric thickness depends on the number of layers of fabric on top of each other and their fabric properties at the attachment position. The fabric thickness is measured using a special micrometer. We are happy to support you in this. Please contact us and send us a sample of the corresponding textile.

Design recommendation / Selection of the right starting position
The attachment positions of the PREMEO system on the garment should be chosen so that unevenly thick layers of fabric are avoided. The design of the cuff widths (including seams) should be such that the pushbutton design to be selected has sufficient space for a secure connection and that attachment to seams is avoided.

In the case of multiple layers of fabric, it is recommended to attach seams next to the PREMEO snap fastener. This prevents the superimposed layers of fabric from shifting when subjected to lateral stress.

Fabric overlaps (uneven fabric layers) within a cuff or a push-button position should also be avoided. The use of reinforcing tape is recommended to compensate for too thin fabric thicknesses/layers within the cuff. In order to ensure that the serrated ring printer is pulled out of a garment with low fabric strength, reinforcing tape should always be provided on the cuffs.

This leads to incorrect riveting (zigzag bone deflection cores). If the above criteria for selecting the correct attachment position are not taken into account.
