ADVANCEN® Fire-retardant
Product code DP 300
Material plastic
Multifunctional snap system

ADVANCEN® Fire-retardant
Product code DP 300
Material plastic

Multifunctional snap system

This fire-retardant snap system is made entirely of high-performance plastic material and is therefore ideal for workwear and multi-standard protective clothing. It complies with relevant certifications, is waterproof and is also suitable for automotive and technical applications.

This makes ADVANCEN® Fire-retardant a fastening system that meets the highest standards of safety and efficiency. Ideal for dangerous working environments.

A B C D
A Cap
B Socket
C Stud
D Cap

SPECIAL FEATURES

  • 100 % metal-free, nylon
  • Antistatic
  • Suitable for rental linen service providers
  • High durability
  • Flat fastener

TYPICAL AREAS OF APPLICATION

  • Multinorm protective clothing
  • Moisture protection
  • Lightweight workwear
  • Automotive and technical applications

CARE INSTRUCTIONS

  • Household laundry 60 °C
  • Industrial wash ISO 15797
    Washing process no. 2

CERTIFICATES

  • Industrial wash resistance tested 15797:2018 washing method no. 2
  • High temperature resistance in accordance with EN ISO 11612:2015, tested in accordance with ISO 17493:2016 (5 min. 180 °C +/- 5)
  • Fire-retardant in accordance with ISO 11612:2015, tested in accordance with ISO 15025:2016* procedure no. 1
  • Meets the criteria of the electrical arc fault test IEC 61482-2 Ed 2:2018
  • NFPA 2112 (2018 Edition), high temperature resistant, tested and certified by UL
  • Waterproof according to EN 343, tested according to EN 20811
  • Needle detector safe (Kensin)
  • Oeko-Tex Standard 100 D10-0015

*Dependent on test method and fabric used.
Test report on request.

ADVANCEN® Fire-retardant in action

Multifunctional when it counts

Discover the versatility of this snap system for multi-standard protective clothing or technical applications.

ADVANCEN® Fire-retardant DP 300
TEST REPORT

LIMITED FLAME SPREAD
ACCORDING TO EN ISO 15025 A, TESTED BY STFI

Resistant to electric arc faults, in accordance with IEC 61482-2:2014,
tested by STFI. ADVANCEN® DP 300 FR Box test method: Test method for products APC 2.

TEST SYSTEM IN OPEN STATE

Caps are deformed by the flame, but the material does not drip and is residue-free (without soot).

TEST SYSTEM IN CLOSED STATE

Components deform insignificantly and can still be opened afterwards.

ADVANCEN® Fire-retardant product code DP 300 material plastic Download-Vorschau

Download catalog: ADVANCEN® Fire-retardant DP 300

The catalog with all relevant technical information and application areas is available for download.

ADVANCEN® Fire-retardant product code DP 300

Article
D (mm)
Material
Info
Note
Plastic caps

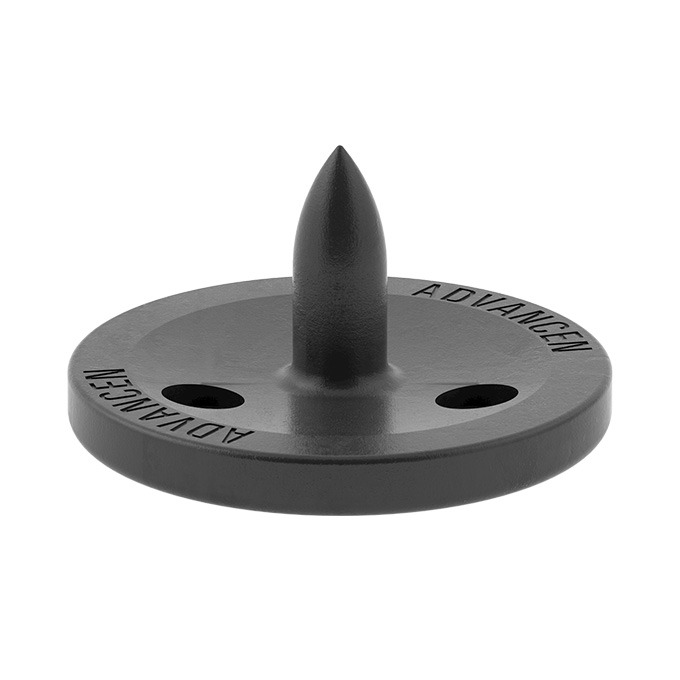

DPN 300/13 P ADVANCEN®
13,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174468 NSD(DPN 300/13) Attachment tool (1981994A0)

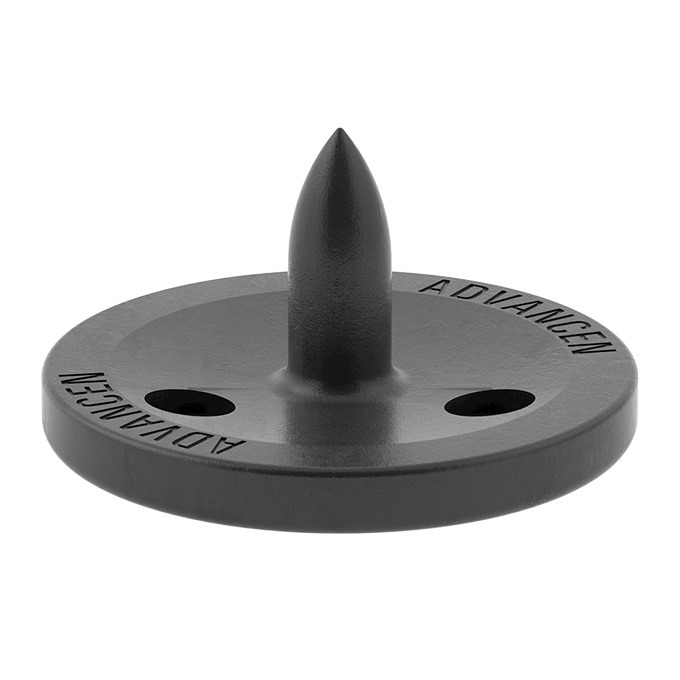

DPN 300/15 P ADVANCEN®
15,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174467 NSD(DPN 300/15)
Attachment tool (1981993A0)
Socket
DPO 300 P ADVANCEN®
12,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174466 NSU(DPO 300)
Attachment tool (1981992A0) Two-stage attachment process
Stud
DPK 300 P ADVANCEN®
12,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174465 NSU(DPK 300)
Attachment tool (1981991A0) Two-stage attachment process
Post
DPN 300/13 P
13,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174468 NSD(DPN 300/13) Attachment tool (1981994A0)
DPN 300/15 P
15,0 mm
Plastic, fire-resistant, non-conductive, (waterproof)
0174467 NSD(DPN 300/15)
Attachment tool (1981993A0)
