Below you will find an overview of our Snap Caps

We offer various standard caps in different shapes and sizes made of brass, stainless steel, plastic or die-cast zinc for our Snap Systems. The caps can be finished to your individual requirements. You can find an overview of the design options here.

Blind caps

DSB 4.005 12,5 mm

DSB 4.005S 12,5 mm

DSLB 10 16,0 mm

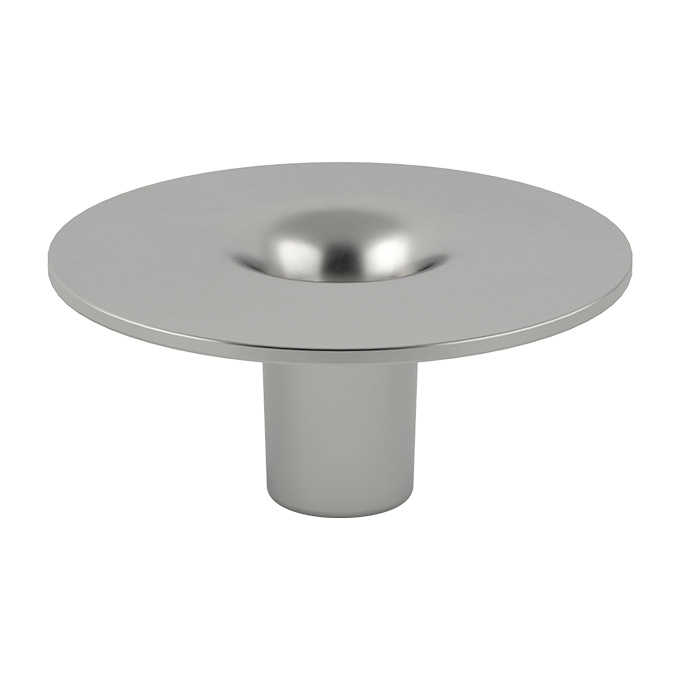

SK35-W PT 10,5 mm

Plastic caps

DK 120/13 Schwarz 13,0 mm

DK 120/13 Weiß

DK 306/13.176MPS 13,0 mm

DK 306/13.176PS 13,0 mm

DK 306/13.76M 12,9 mm

DK 306/13.76M WP 13,0 mm

DK 306/15.176MPS 15,0 mm

DK 306/15.176PS 15,0 mm

DK 306/15.76M WP 15,0 mm

DK 306/15.76M 15,1 mm

DK 606/6.176M 15,0 mm

DK 606/6.176M-PB LONG 15,0 mm

DK 6100/6.176M 15,0 mm

DK 901/4 ½/5.176M 12,7 mm

DK 901/4 ½/5.76M WP 12,7 mm

DK 901/5.0/5.76M WP 13,8 mm

DK 901/6/5.176M 15,0 mm

DK 901/6/5.76M WP 15,0 mm

DK 9100/6/5.176M 15,0 mm

DK 9100/6/5.76M WP 15,0 mm

DPN 300/13 P ADVANCEN® 13,0 mm

DPN 300/15 P ADVANCEN® 15,0 mm

DZ 36001/4/13.029 13,0 mm

DZ 36001/4/13.029M 13,0 mm

DZ 36001/4/14.029 14,0 mm

DZ 36001/4/15.029 15,0 mm

DZ 36001/4/15.029M 15,0 mm

Beitragsbild zu PLANCER L cap 66-7780-20 black glossy 5000

Plancer L cap 66-7780-20 13,1 mm

Beitragsbild zu PLANCER L cap 66-7780-20 black matt 2034

Plancer L cap 66-7780-20 13,1 mm

Beitragsbild zu PLANCER L cap 66-7780-20 white glossy 5429

Plancer L cap 66-7780-20 13,1 mm

Beitragsbild zu PLANCER L cap 66-7780-20 white matt 2076

Plancer L cap 66-7780-20 13,1 mm

Beitragsbild zu PLANCER L cap 66-7781-24 black glossy 5000

Plancer L cap 66-7781-24 15,2 mm

Beitragsbild zu PLANCER L cap 66-7781-24 black matt 5000

Plancer L cap 66-7781-24 15,2 mm

Beitragsbild zu PLANCER L cap 66-7781-24 white glossy 5429

Plancer L cap 66-7781-24 15,2 mm

Beitragsbild zu PLANCER L cap 66-7781-24 white matt 2076

Plancer L cap 66-7781-24 15,2 mm

Beitragsbild zu Plancer S cap 66-7780-20 black glossy 5000

PLANCER S cap 66-7780-20 9 mm

SB 1805/6.0/5.176M 18,0 mm

SB1805 MBP 17,8 mm

SP01P001/152 15,2 mm

Metal caps

DK 11/001/11/5,8 11,3 mm

DK 110/13S 13,0 mm

DK 110/15 15,0 mm

DK 110/17 17,0 mm

DK 11001/3/6,5.004 11,3 mm

DK 301/13 WP 13,0 mm

DK 301/13S 13,0 mm

DK 301/15 WP 15,0 mm

DK 301/15S 15,0 mm

DK 306/13B 13,0 mm

DK 306/15B 15,0 mm

DK 606/15B 15,3 mm

DK 606/17B 16,8 mm

DK 606/19B 19,0 mm

DK 606/6 lang 15,4 mm

DK 606/6.010 15,4 mm

DK 6100/6.012/3 15,4 mm

DK 6349/6 LG 15,4 mm

DK 6349/6.001 15,4 mm

DK 901/2 ½/5 ?? mm

DK 901/4 ½/5 12,7 mm

DK 901/4 ½/5.073 WP 12,7 mm

DK 901/5/5 13,8 mm

DK 901/5.0/5.073 WP 13,8 mm

DK 901/6 ½/5 15,0 mm

DK 901/6 ½/5.073 WP 15,4 mm

DPFN 1S 10,0 mm

SB1305BB 12,9 mm

SB1405BB 13,8 mm

SB1505BB 15,1 mm

SB1705BB 16,8 mm

SB1805BB 17,8 mm

SXF 1742BB-FL 16,8 mm

Pronged ring caps

Beitragsbild zu DAZ 36.001 (serrated ring as cap)

DAZ 36.001 10,2 mm

Beitragsbild zu DAZ 36.002 (serrated ring as cap)

DAZ 36.002 10,3 mm

Beitragsbild zu DAZ 36.003 (serrated ring as cap)

DAZ 36.003 10,3 mm

Beitragsbild zu DAZ 36.026 (serrated ring as cap)

DAZ 36.026 14,4 mm

Beitragsbild zu DAZ12.0099 (serrated ring as cap)

DAZ 12.009 8 mm

DZ 36001/4/12 NEW 11,8 mm

DZ 36001/4/12.002S 11,8 mm

DZ 36001/4/12/1768 12,0 mm

DZ 36001/4/14 NEW 13,3 mm

DZ 36001/4/15 NEW 15,4 mm

DZ 36193/3,5/11.060SP 11,6 mm

DZ 36802/3,5/11.060SP 11,8 mm

SA 12-W 12L CPR 8 mm

SA 14-W 14L CPR 8,8 mm

Beitragsbild zu SA 14-W 14L OPL (serrated ring as cap)

SA 14-W 14L OPL 8,2 mm

SA 15-W 16L CPR 10,2 mm

SA 15-W 16L CPR-OPEN 10,2 mm

SA 15-W 16L PEARL 10,2 mm

SA 16-W 16L PEARL 10,2 mm

SA 16-W 18L CPR 11,4 mm

SA 16-W 18L PEARL

SA 16-W 19L CPR 12,1 mm

SA 16-W 19L CPR-OPEN 12,1 mm

SA 16-W 20L CPR 12,7 mm

SA 16-W 24L CPR 15,2 mm

SA 16-W 24L CPR-OPEN 15,2 mm

Socket caps

SPC 3.006 20,0 mm
Innen: 8,7 mm

SPC 3.006 B 20,0 mm
Innen: 8,7 mm

SPC 3.055 BB 21,0 mm
Innen: 9,0 mm

SPC 3.060 BB 17,8 mm
Innen: 8,7 mm

Metallkappen Messing Brass = B | Edelstahl Stainless Steel = S

Die Kappe wird aus Metallblech gestanzt und in Form gezogen und verpresst. Formen und Größen sind limitiert.

SBM

SBO

SXF

DK 301

For PREMEO PROTECT-WP system

DK 901

For ROBUSTO PROTECT-WP system

Kunststoffkappen Polyamid = P

Die Kappe wird aus Polyamid in Form gespritzt. Formen und Größen sind limitiert.

DK | SB

Limited water resistance

DK 306

For PREMEO PROTECT-WP system

DK 9100

For ROBUSTO PROTECT-WP system

DK 901

For ROBUSTO PROTECT-WP system

Kappen aus Zinkdruckguss Zinkdruckguss = Z

DC13B32ZB SNAP CAP WBL(U) TSZ0581 STONE (D13) CO22

DC17A174ZB SNAP CAP QNA02(U)/SC074J(EPOXI) TSZ0304

DC15A473ZB SNAP CAP QNA03(U)(SPRT) TSZ0576 SPLIT

DC15A481ZB SNAP CAP QNA03(U) TSZ0582 BEACH (D15) CO22

DC17A506ZB SNAP CAP WBL(GU) TSZ0612 GEARWHELL CO25

DK 901/5/5.255Z CAP AGM „FACET“

Durch die variable Gestaltungsvielfalt dieses Materials lassen sich auch alternative Befestigungsmöglichkeiten umsetzen z.B. auf Zackenringbasis (System ACTIVO), Ziernieten, Tackbuttons, Ansteck-Pins oder Annähknöpfe.

DOWNLOAD PUSH BUTTON CAPS CATALOG

The Snap Caps catalog is available for download. From correct processing to application examples, the catalog offers you everything you need to know about Snap Caps. The document is available in PDF format. If you have problems displaying it in your browser, we recommend that you use Adobe Reader. Download at get.adobe.com/en/reader

DOWNLOAD REQUEST (PDF 1.9 MB)
